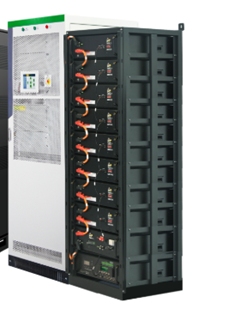

Integrated Optical Storage Machine

Integrated optical storage hybrid converter designed for household optical storage system application development, meet photovoltaic-related IEC62109-1/2 certification and UPS-related IEC62040-1/IRC62477-1 certification.

Products to provide five types of user interface: Battery, photovoltaic, power grid, load, communication.

Battery: low voltage rated 48V lithium battery system, maximum charge and discharge current 60A;

Photovoltaic：A 550VDC (Max) photovoltaic system consisting of monocrystalline or polycrystalline silicon；

Power Grid: single-phase 220V/50Hz voltage, maximum feed current 27.3 A, suitable for TN-C/TnN-S/TN-C-S/TR system;

Load: single-phase 230V/50Hz (or 60Hz) load maximum power 3KW;

Communication: provide RS485/Can/LAN/wIFI/GPRS/USB/DRMS/DI (Do) and other communication interfaces.
